Traditional and CNC Machining based in Crown Point, Indiana

arrow-up


Rohder Machine and Tool has Traditional and CNC Machining services available to its customers. Capable of working with numerous materials, including Stainless Steel, Aluminum, and Carbon Steel, Rohder's Turning centers handle up to 25" diameters, through holes up to 4.5", and between center distances of 84".

Serving the surface mining industry, steel industry, and meeting the needs of many different industrial applications, Rohder provides the experience and technical capability to handle any project.

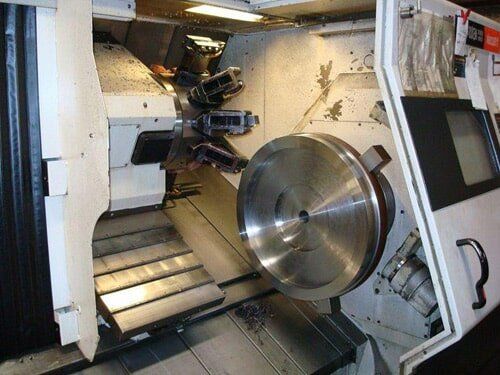

CNC Rachet - CNC Machining in Crown Point, IN


Specifications:

Materials


Aluminum
Brass
Carbon Steel

Copper
Stainless Steel Alloys
Structural Steel



Turning Diameter


Up to 25 Inch


Between Center Distance

84 Inch


Through Hole Capacity


4.5 Inch


Applications



Maritime Industry (ships)
Steel Mills
Surface Mining Equipment

Utilities (power plants)
Various Industrial Fields



Equipment List


  • CNC Mazak Quick Turn Turning Center Nexus 400-Iim Mazatrol Matrix With Live Tooling – 24” Swing X 80” Center 4-1/2” Thru Spindle
  • CNC Mazak Quick Turn 25l With Mazatrol – T Plus 22” Swing X 12” - 48” Centers
  • CNC Mazak Quick Turn 300 – Mazatrol Fusion 640t 22” Swing X 12” - 48” Centers
  • CNC Mazak Turning Center M-4 23” Swing X 11 1/4” – 60” Center
  • CNC/VMC 1060 ZPS/Tree Milling Machine 1-Ton 40” Travel With 4th Axis Capabilities, Probing Capabilities
  • CNC Hurco VMX60 Milling Machine 1-1/2 Ton – 60” Travel With 4th Axis Capabilities, Probing Capabilities
  • Engine Lathes – 35 ½ Swing – 10' Centers
  • Engine Lathes – Other Smaller Lathes 16” And 18” With 50” To 60” Centers
  • #4 Gisholt Turret Lathe
  • Horizontal Bar Mill – 3 ½” Diameter
  • K & T Milling Machine With 60” Table
  • Cincinnati Milling Machine With 6' Table
  • Large Radial Drill With 5' Arm
  • #5 Drill Press With Adjustable Table
  • Bridgeport Mills – 48” Table
  • Surface Grinder – 24”
  • Tool Grinder
  • Electrical Discharge Machine
  • Doall Saw Automatic Feed C-70
  • Doall Saw Automatic Feed C-260a
  • Hydraulic Press 50 Ton
  • Hydraulic Press 250 Ton
  • Wire Feed Welders
  • Arc Welder
  • #5 Beatty Shear
  • Richle Tensile Tester 200,000# With Epson Print Out
  • Wilson Rockwell Testers
  • Lindberg Heat Treat Furnace
  • ¾” Landis 2 Spindle Threader
  • 1” Landis 3 Spindle Threader
  • 1 ½” Landis 2 Spindle Threader
  • 2” Landis 2 Spindle Threader
  • 2” Landis 1 Spindle Threader
  • 2” Acme Threader
  • 4” Landis Threader
  • National Pointer 2”
  • Landis Pointer ¾” – 2”
  • Economy Pointer ½”
  • 5 Ton P & H Over-Head Crane
  • Kinefac Mc-50 Roll Threader
  • (2) Reed B112 Roll Threaders


Products



Capscrews (Hex and Socket)
Coupling Bolts
Double and Single End Studs
Eye Bolts
Flange Bolts
Fully Threaded Studs
Hex head bolts
J-Bolts

Liner Bolts
Nuts (Standard and Special)
Pins
Ratchets
Square Head Bolts
Trunnion Bolts
U-Bolts
Washers
